贴骨机 |
|
|
| 产品名称：贴骨机 |
| 产品编号：AEC_ Zipper machine |
| 详细说明： |
贴骨机（拉链粘合机器）和拉链挤出机
1. 贴骨机（拉链粘合机器）
| MD-900全自动夹链贴膜制袋机 |
Full Automatic Clip-chain Film Pasting Bag-making Machine |
| 特点和使用范围 |
Characteristics and Scope |
| 该机由折边、折底、热合、点断、打孔、焊烫点、热切等功能，可制作各种不同型号的夹链封口袋，如内热合外加点断、外热合袋口加锁头等。 |
MD-900Full Automatic Clip-chain Film Pasting Bag making Machine Unit, which was revised, trail-produced, verified and remoulded by referring to advanced foreign technology by our plant, is a multi-purpose bagging machine.This machine has following functio |
| 本机采用先进电脑控制、液晶显示及全自动伺服马达驱动，可断夹链、断薄膜、自动报警、无料自动停机、印刷电眼失效自动停、温度不够自动停车、折边采用光电纠编、磁粉张力等功能。 |
This machine has adopted advanced computer-controlled, liquid crystal display and automatic service motor-driven. It can cut clip-chain and film, automatically alarm, shut down automatically when no material, stop printing automatically when electronic ey |
| 1.本机操作简便、封口牢固、品质美观。 |
1. This machine operates easily, seals firmly and has quality appearance. |
| 2.制作过程从单膜原料到电眼纠边、折边、插底、穿拉链、贴合、烫边、割边、超声波、超声波、印刷机电眼、打孔、热切、自动计数、全部过程采用全自动作业。 |
2. The whole procedure is operated automatically from single film raw material to electronic eyes correcting,edge folding, end folding,zipper fitting,pasting,edge welding,edge cutting,ultrashort wave,electronic eyes printing,drilling,heat cutting,and aut |
| 主要技术参数 |
Main technical parameters |
| 型 号 |
Model |
MD-900 |
| 适用原料 |
Raw material |
OPP PELDPE等高低压料High and low voitage material |
| 电 热 |
Heater |
3KW |
| 制袋 宽度 |
Bag making width |
≤850 |
| 制袋 长度 |
Bag making length |
≤750 |
| 制袋 速度 |
Bag making speed |
40-80只/分（one/min）,8-16米/分（m/min） |
| 制薄膜厚度 |
Film thickness |
0.03mm-0.09mm(单层single layer) |
| 电 源 |
Voltage |
220V |
| 整机功率 |
Power |
6kw |
| 整机外型尺寸 |
Dimension (L×W×H) |
9000×1800×2000mm |
| 制袋机外型尺寸（长×宽×高） |
Outside Dimension (L×W×H) |
4300×1600×1800mm |
| 热贴合机外型尺寸（长×宽×高） |
Hot Pasting Machine Dimension (L×W×H) |
1700×1850×2000mm |
| 折边机外型尺士（长×宽×高） |
Edge folding machine Dimension(L×W×H) |
2100×1800×1600mm |
| 机器重量 |
Machine Weight |
N.W:2600KGS |
2. 拉链挤出机

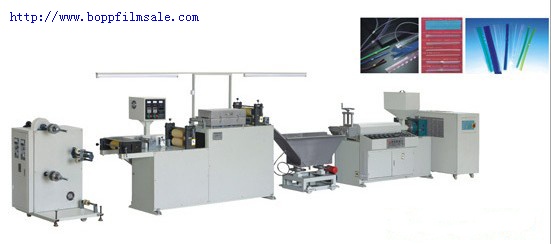

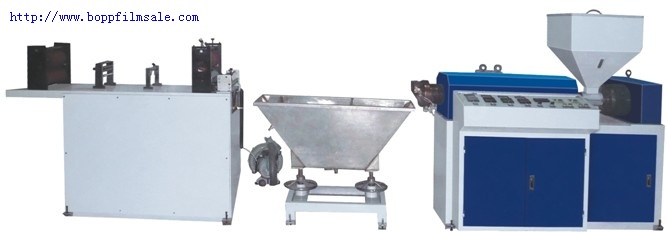

| MD-45内拉链复合挤出机(拉链机） |
Inside Clip-chain Extruder |
| 功能和范围： |
Function and scope |
| 该设备操作简单，更换模具可制作各种开关的夹链，由主挤出机、模具定型、冷却水 恒温定型、脱水装置、风干装置、夹链合口装置、自动摆放收卷等组成。模具结构灵活，装卸方便。 |
The model is simple to operate, and can produce various types of chain switch. It consists of the main extruder, mold stereotyping, cooling water constant temperature stereotyping,dewatering devices,dried devices,clip chain heal up devices and automatic d |
| 主要技术参数: |
Main technical parameters |
| 螺杆 |
ф45 |
Screw stem |
ф45 |
| 电热 |
6.8KW |
Heater |
6.8KW |
| 主机功率 |
5.5KW |
Power |
5.5KW |
| 冷却水机功率 |
4KW |
Water Chilling Machine Power |
4KW |
| 空压机功率 |
4KW |
Air Compressor Power |
4KW |
| 烘水脱干 |
2KW |
Water Roaster Power |
2KW |
| 副机功率 |
1.1KW |
Secondary Machine Power |
1.1KW |
| 收卷机 |
1.1KW |
Gathering Machine Power |
1.1KW |
| 装机容量 |
正常工作12KW |
Equipment Capacity |
12KW (Normal Working Condition) |
| 整机外型尺寸（长×宽×高） |
5300×650×1600 |
Dimension (L×W×H) |
5300×650×1600mm (5CBM/1000KGS) |
|
 |
|
